Ironwood™

Accepted in 1999 by the FHWA as a Test level 3 Highway Barrier.

Installed on publicly funded;

City, Town, County, State and Federal Highways, Parks and Recreational areas.

On commercially funded;

Ski Resorts, Residential Developments, Golf Courses, Casinos

Project Photos

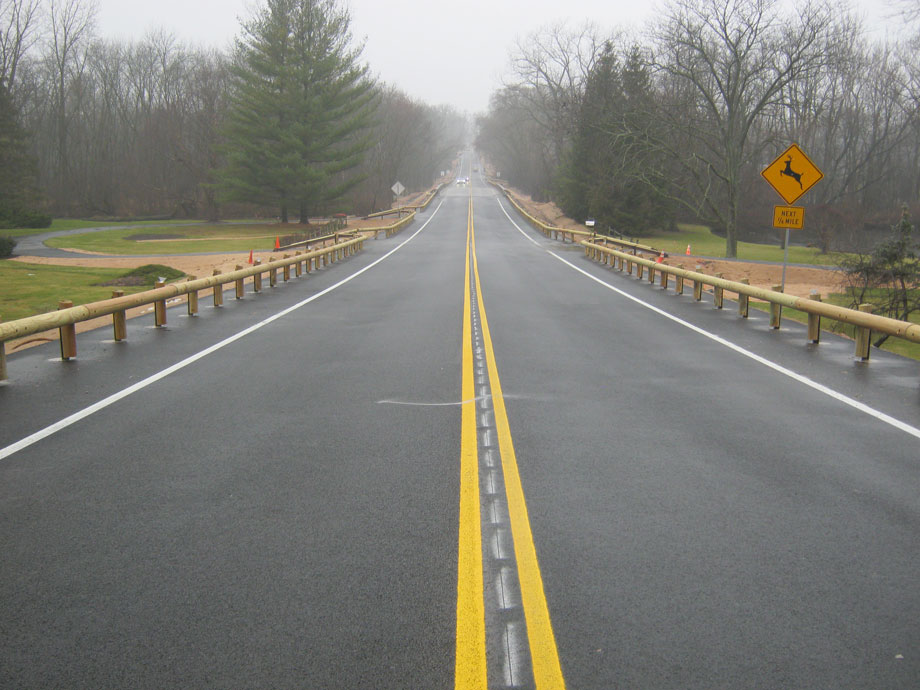

Ironwood Guiderail Project 1

MILLER ROAD
Lake Co. IL

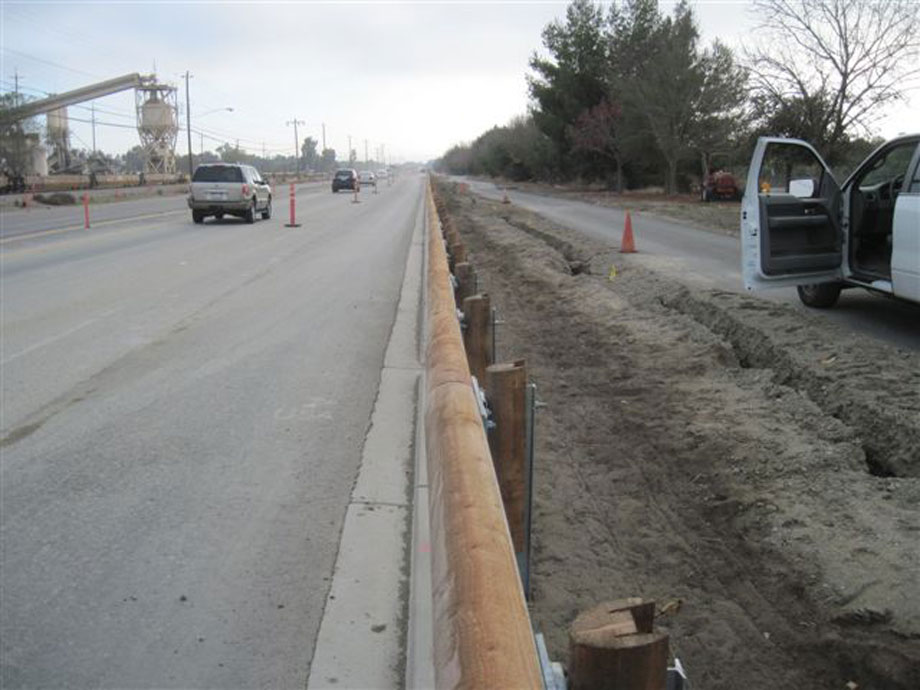

Ironwood Guiderail Project 2

STANLEY BLVD
Alameda Co. CA

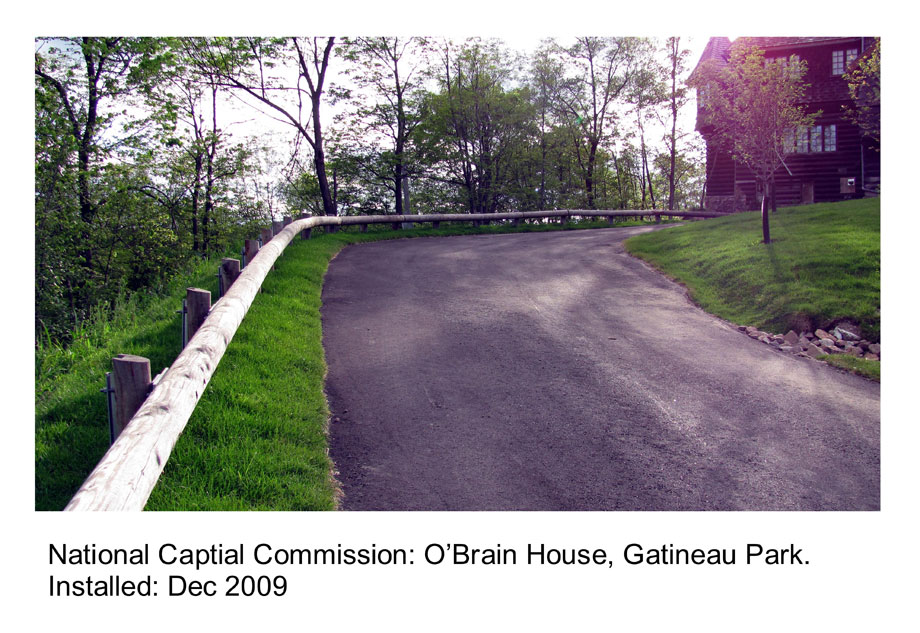

Ironwood Guiderail Project 3

GATINEAU PARK
Quebec Canada

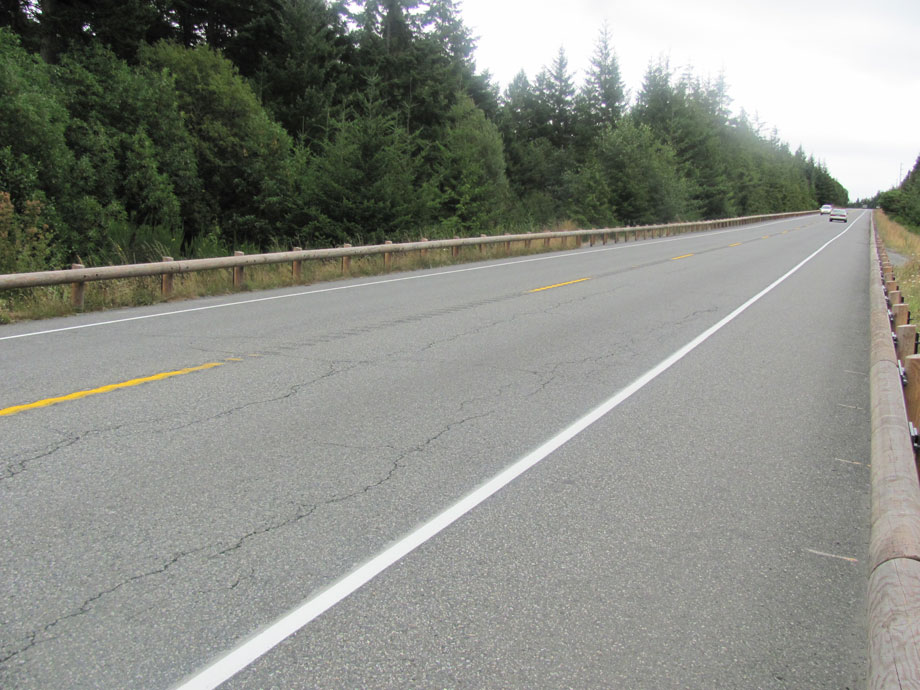

Ironwood Guiderail Project 4

WHIDBEY ISLAND
WASHDOT

Project Photos

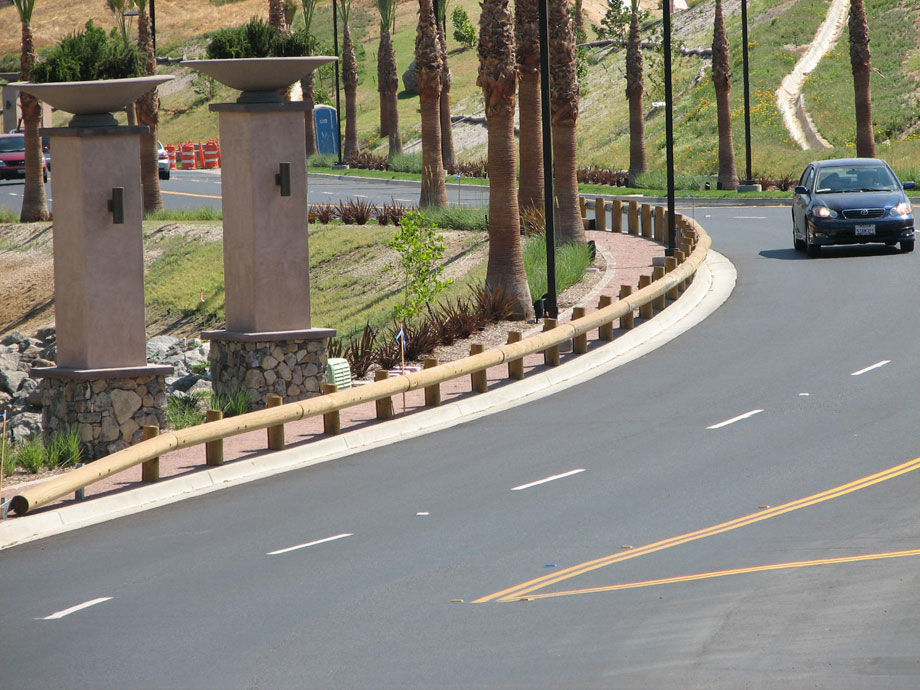

Ironwood Guiderail End Treatment 1

TYPE — 1
Where speed
is not a factor

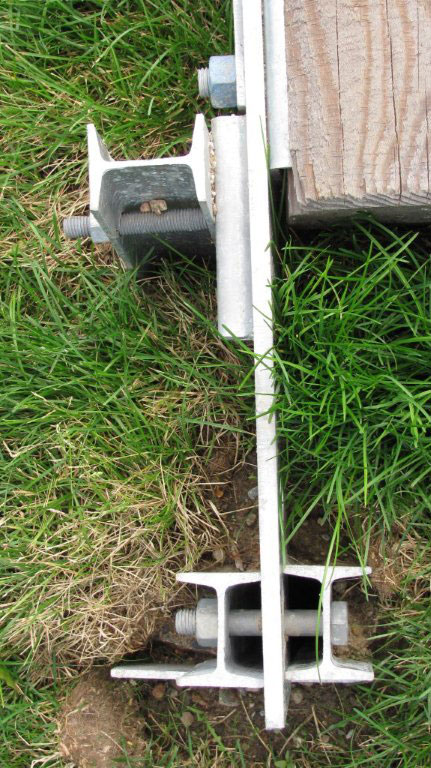

Ironwood Guiderail End Treatment 2

TYPE — 1
ANCHOR

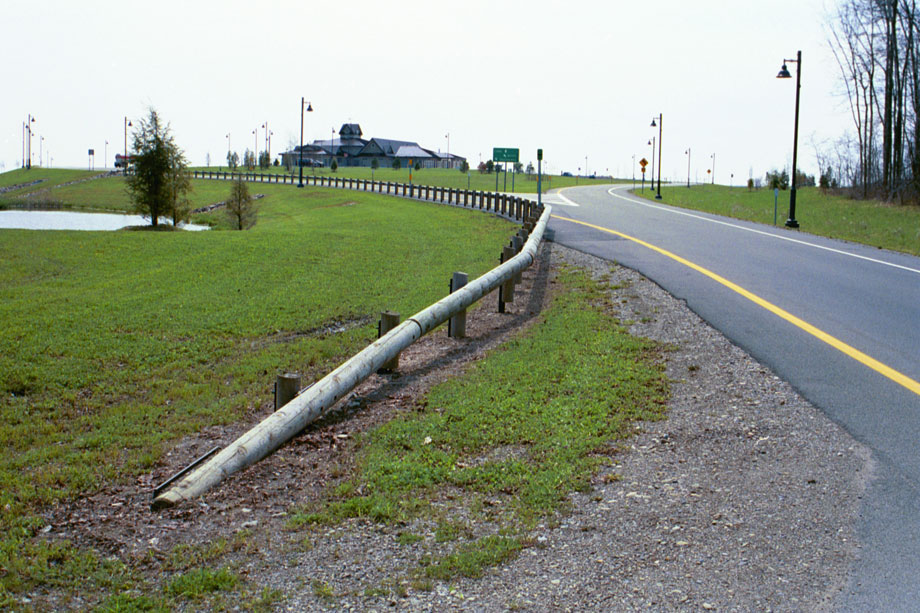

Ironwood Guiderail End Treatment 3

TYPE — 2
At or near the
clear zone

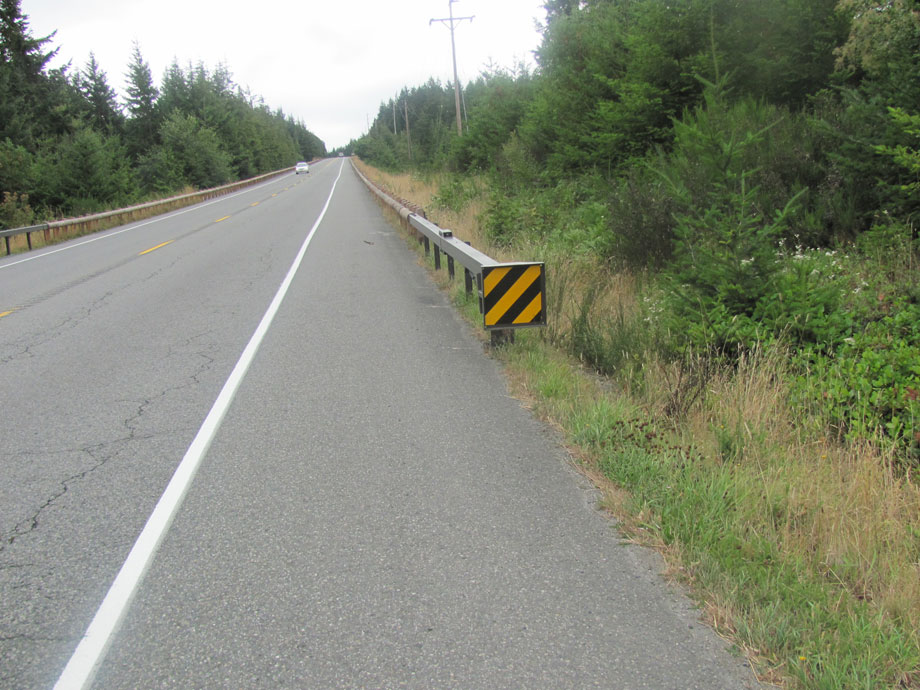

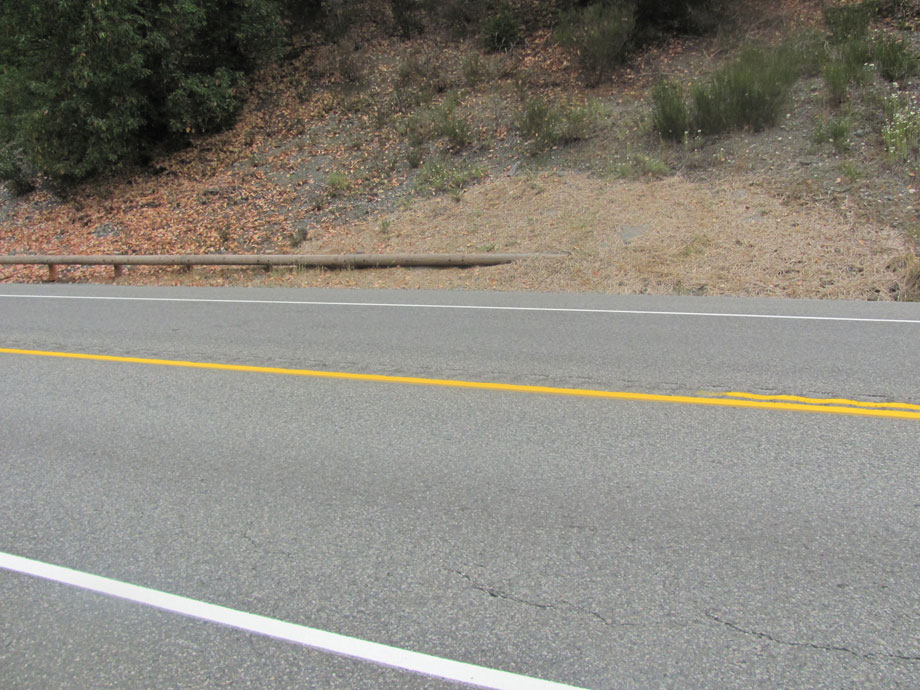

Ironwood Guiderail End Treatment 4

BURIED
Type-2 buried
in the slope

Ironwood Guiderail End Treatment 5

TYPE — 3
Where space
is limited

Splice Details

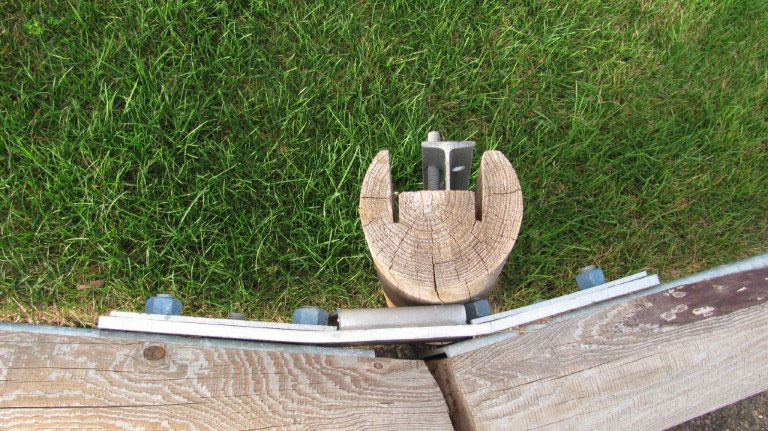

Ironwood Guiderail Splice Details 1

BENT SPLICE,
Radius

Ironwood Guiderail Splice Details 2

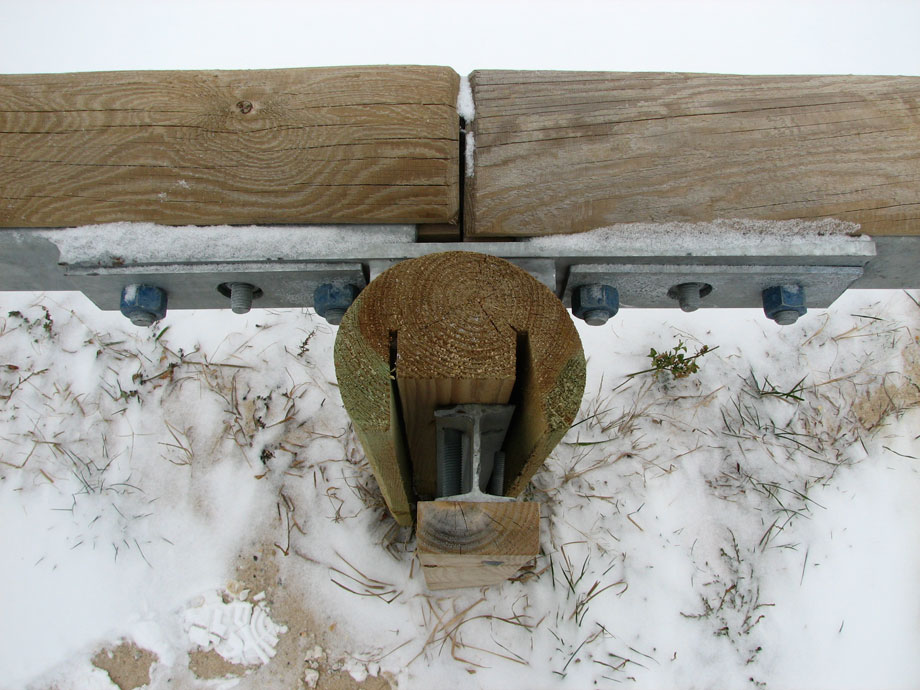

SPLICE CONNECTION
Wood Trimmed Post

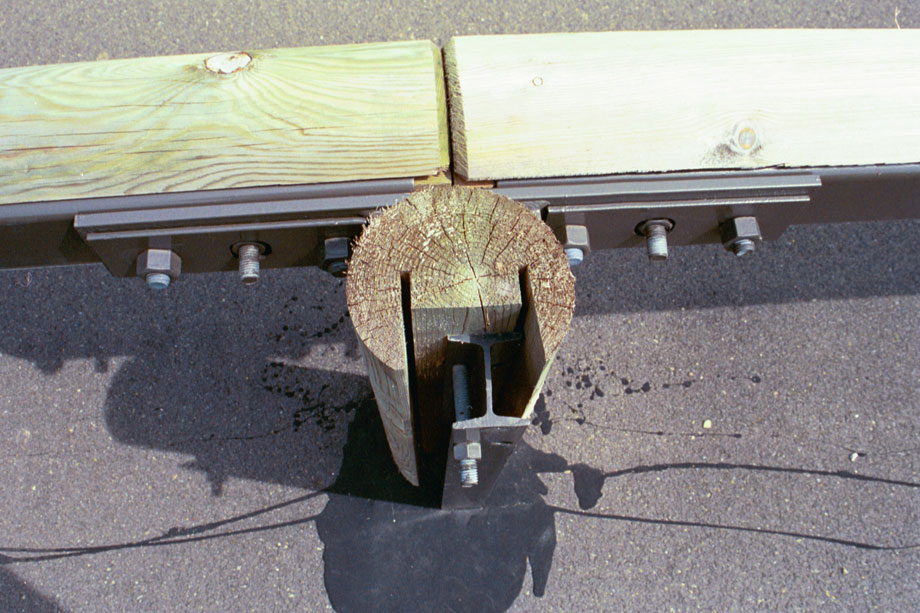

Ironwood Guiderail Splice Details 3

STANDARD SPLICE
with Powder Coating

Ironwood™ Steel Backed Timber Guardrail

Download Drawing A-1
